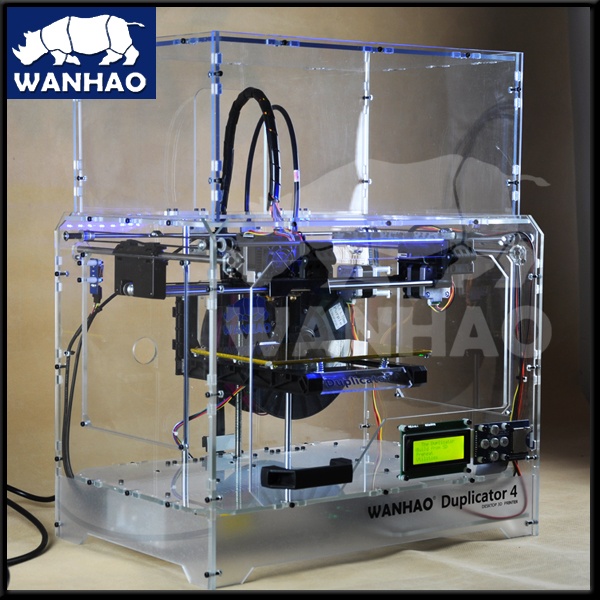

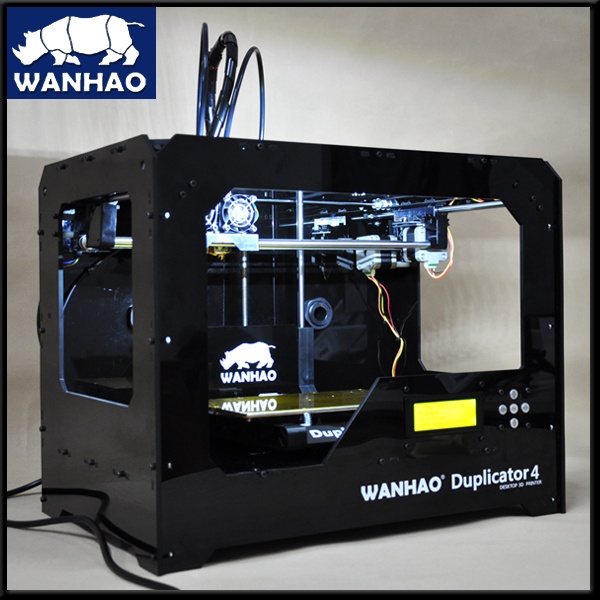

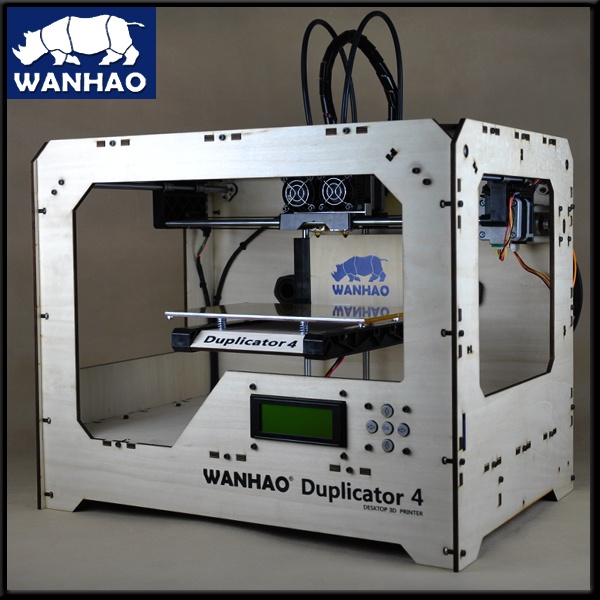

DUPLICATOR 4 SPECIFICATION
| General Properties |
|
| Interface |
SD or USB Link |
| Max Printing Object Size |
225*145*150mm |
| Extruder |
Single or Dual |
| Max Extruder Temperature |
260°C(500°F) |
| X,Y Axis Positioning Resolution |
0.02mm |
| Layer thickness |
0.1mm -0.4mm |
| X,Y axis max speed |
5000mm/minute |
| Z axis positioning resolution |
0.005mm |
| Z axis max speed |
1000mm/minute |
| Printing Speed |
30 to 80 mm/s |
| Printing Speed |
15 cc/Hour |
| Software |
Replicator G |
| Printing Material |
PLA, ABS 1.75mm |
| Input power |
110V-220V (IEC cable) 200W |
| Frame |
Black, Clear or Wood |
| Input format |
STL, G code |
| Temperature Sensor |
thermocouple temperature sensors |
| |
|
| Dimensions |
|
| Printer dimensions |
320 x 466 x 382 mm |
| Packing dimensions |
560*420*520mm |
| Weight |
12KG |
| Comsumables |
2 1kg rolls ABS |
| Compliance |
GB, CE |
